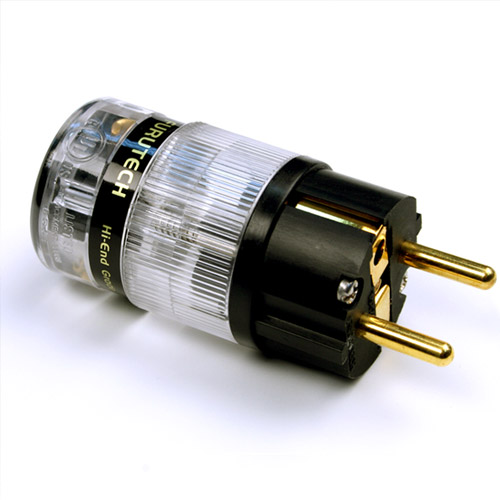

FI-E11(Cu)

RATING

FI-E11(Cu): Non-Plated
Type:CEE7-VII


KEMA-KEUR--- KEMA–Standard(Netherlands), Listed(2076430.01)
(Type: 2-pole+earth Rating: 16A 250V A.C. )


FEATURES

•Eutectic copper alloy α (Alpha) Conductor
•Materials: Front body Nylon/fiberglass
•Shell polycarbonate


SPECIFICATIONS

•Specifications: Accommodates cable diameters from 6.6mm to 16.0mm
(With a longer screw up to 20mm)
•Wire accommodation: Max 5.5 Square mm 10AWG
•Dimensions: Body length 56.2mm x 39.3mm diameter x 89.3mm overall length
•Rated: 16A/250V
