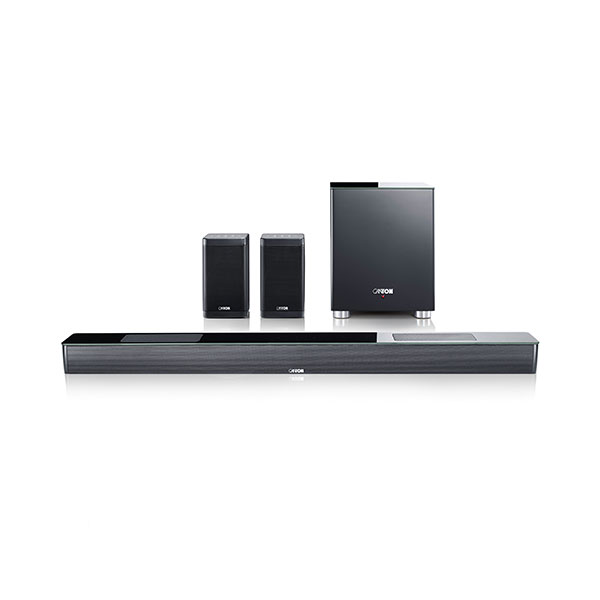

Smart Soundbar 10 + Smart Soundbox 3 + Smart Sub 8 Set

Product Data




Smart Soundbar 10


Type : 2.1.2 Virtual Surround System

Engineering Principle : Bass reflex system with passive membrane

Systempower : 300 Watts

Frequency response : 40...23.000 Hz

Crossover frequency : 150 Hz

Woofer : 4 x 79mm (3.1"), aluminium (2 x Atmos)

Midrange : 2 x 50mm (2"), aluminium

Tweeter : 2 x 19 mm (0.75"), fabric

Connection

1 x HDMI® Output (with ARC)

3 x HDMI® Input (with 3D, 4K)

1 x Digital (optisch)

1 x Digital (Coax)

1 x Analog (Chinch)

1 x Sub Out

Features

Bluetooth® 4.0

Dolby Digital® decoder

DTS Digital Surround™ decoder

Stereo & Surround Sound

bass, mid and treble control

Touch panel on the top

LED Display

Remote Control

premium quality MDF-cabinet

Special Features

simple one-cable installation - just one cable to your TV and one cable for power

IR-learn-function - controllable with TV-remote

Automatic on/off switch with TV

ECO Mode - selectable power save mode (On/Off)

Bluetooth Select - automatic selection of bluetooth input

IR-delete-function - simple deleting of unwanted learnfunctions

Direct input selection - ideal learnable smart remotes

Lip-Sync - for exact speech synchronization

Equalizer - 3 Presets to adjust the acoustics to the setup location

Easy-Pairing - easiest connection with source device

Warranty : 2 years

Dimensions (WxHxD)

99 x 7 x 10

(38.9" x 2.7" x 3.9")

Weight : 5.24 kg

Power consumption : 0.4 watts

Carton Content

Smart Soundbar 10

Remote control

Power cord

HDMI cable (3.0 m)

Optical digital audio cable

Coaxial digital audio cable

Analogue stereo audio cable

Manual

Packaging : 18 x 115 x 21 cm (7,1" x 45,3" x 8,3")

Weight including packaging : 7,65 kg



Smart Soundbox 3


Type : Multiroom-speaker

Engineering Principle : Bassreflex with passive membrane

Systempower : 120 Watts

Frequency response : 40...30.000 Hz

Crossover frequency : 3000 Hz

Passive membrane : 2x (100 x 57mm / 3.9" x 2.2"), metal, wave surround

Mid-/Woofersystem : 1x 95mm (3.7"), aluminium

Tweeter : 1x 19mm (0.75"), fabric

Connection

1 x Analog (3.5 mm Stereo jack)

1 x Ethernet (LAN)

Features

"Chromecast built-in for Audio" support

Spotify connect support

Bluetooth® 4.0 interface

WLAN 802.11ac 2.4 /5GHz

Bass, midrange and treble control

LED display in front of housing

Special Features

Easy installation - one cable to the power supply

IR learning function - controllable with TV / system remote control

Automatic switch-on and switch-off

ECO Mode - selectable power saving mode (On/Off)

Bluetooth Select - Selects BT input automatically

IR delete function - simplest deletion of unwanted learning functions

Equalizer - 3 presets for acoustic adjustment

Easy-Pairing - simplest connection with a device

Operation as a stereo pair with a second Soundbox 3 possible

Operation as surround loudspeaker with a Smart Soundbar or Vento9/3 possible

In stereo mode balance can be adjusted

In stereo mode, it is possible to adjust the hearing distance

Voice function for better speech intelligibility

Direct input selection ideal for system remote controls

Sleep Timer

3 preset buttons for direct access to playlists and sound settings

Hotel Mode (maximum system volume)

Auto Play Function - Auto Play for Bluetooth

Playback control of Bluetooth and network sources (play/pause) via touch panel (via optional remote additionally title jump forward and backward)

Restore factory settings

Dimensions (WxHxD)

12 x 21 x 12 cm

(4.4" x 8.3" x 4.4")

Weight : 2 kg

Power consumption : 0.4 watts

Available accessories

Smart-Remote control

LS 3 speaker stand

Cantomount U

Carton Content

Smart Soundbox 3

Power cord 1.5 m

Short manual

Spotify manual

Packaging : 29 x 16 x 16 cm (11,4" x 6,3" x 6,3")

Weight including packaging : 2,4 kg



Smart Sub 8


Type : Active Wireless Subwoofer

Engineering Principle : closed system

Musical output : 200 watts

Frequency response : 27...150 Hz (adjustable via a Smart Product)

Crossover frequency : 50...200 Hz (adjustable)

Woofer : 1 x 219 mm (8.6''), Cellulose/graphite (Downfire)

Connection : 1 x low level inputs (cinch)

Features

Automatic on/off switch

Adjustable volume (adjustable with a Smart product)

Adjustable phase limiter (adjustable with a Smart product)

Special Features

SC-technology

Dimensions (WxHxD)

27 x 33 x 27 cm

(10.6'' x 13'' x 10.6'')

Weight : 8.5 kg

Power consumption : 0,32 Watt

Smart Soundbox 3

Smart Soundbar 9

Smart Soundbar 10

Smart Vento 3

Smart Vento 9

Smart GLE 3

Smart GLE 9

Smart Chrono SL 8

Carton Content

Smart SUB 8

Power cord

Manual

Packaging : 44 x 35 x 35 cm (17,3" x 13,8" x 13,8")

Weight including packaging : 9,71 kg


---------------------------------------------------------------------------------


Product Warranty : 2 years
