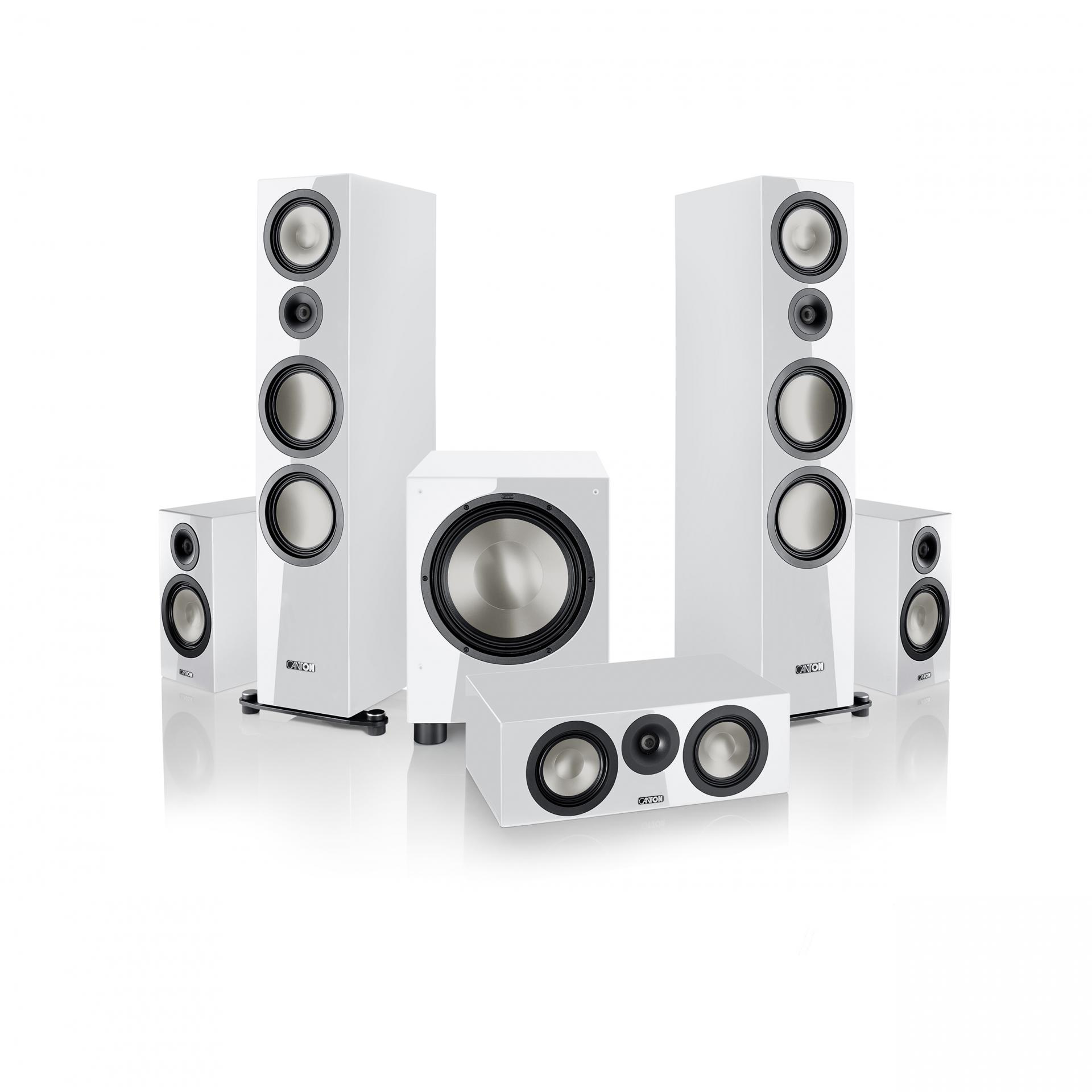

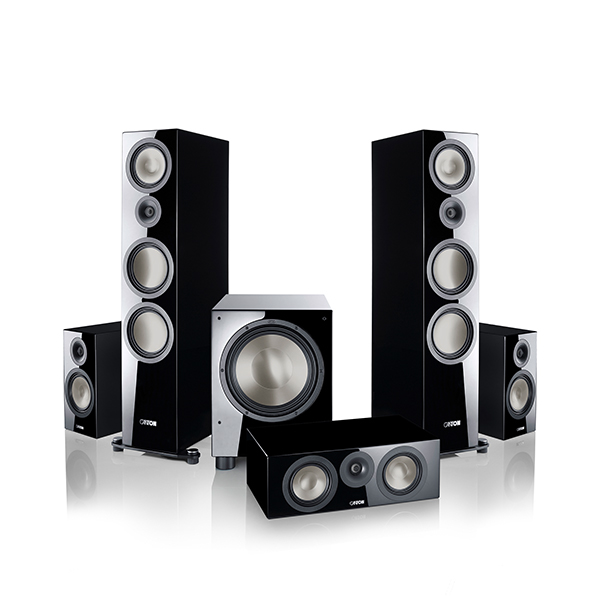

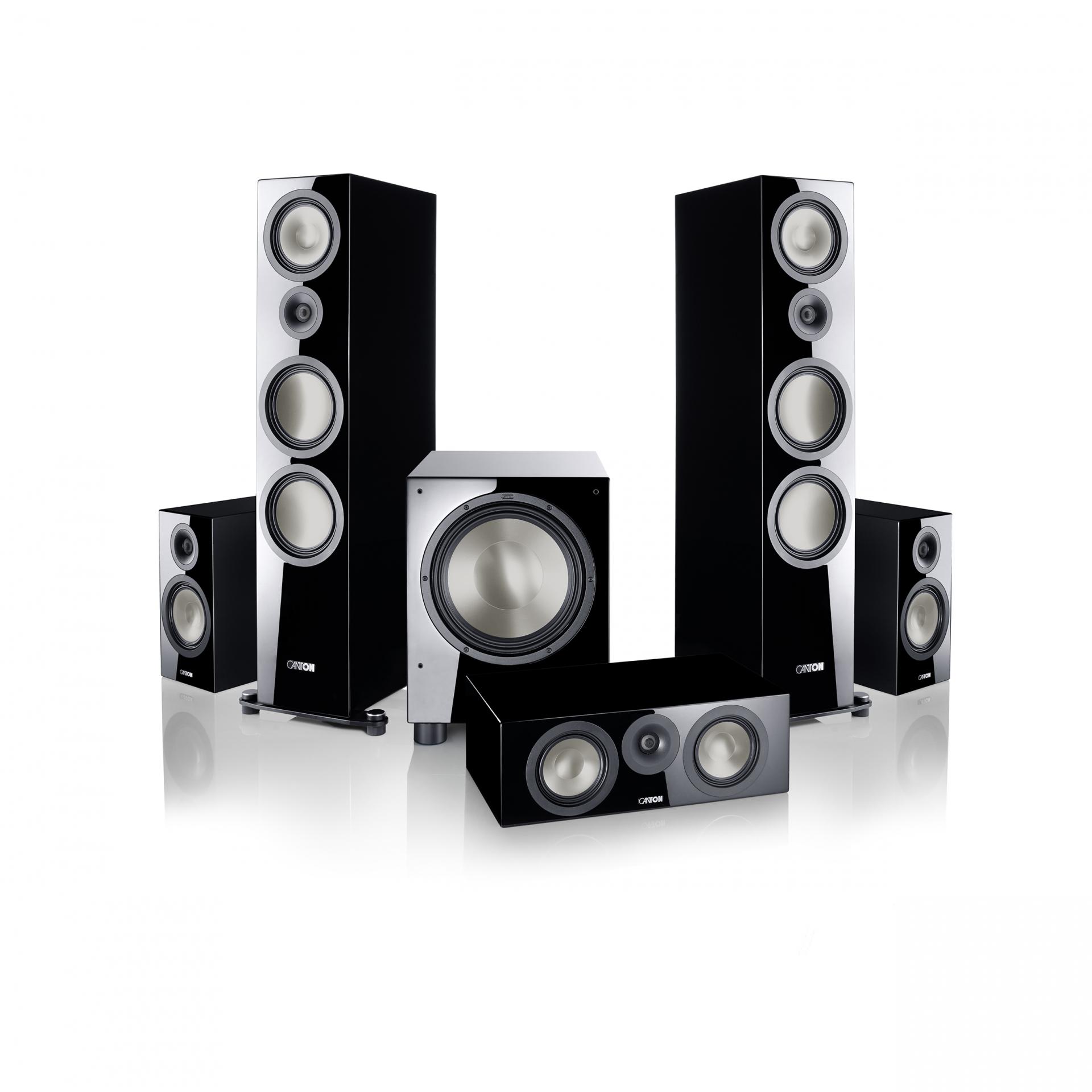

[Canton] B 100 Home cinema Set - 5.1

Product Data



B 100


Type : Floor Standing speaker

Engineering Principle : 3-way bass reflex system

Nom. /Music power handling : 160 / 320 watts

SPL (1 watt/1m) : 88.3 db

Frequency response : 20…40.000 Hz

Crossover frequency : 300 / 3.000 Hz (adjustable)

Woofer : 2 x 200 mm (7.9''), Titanium (Wave surround)

Midrange : 1 x 180 mm (7''), Titanium (Wave surround)

Tweeter : 1 x 25 mm (1''), aluminum-manganese

Special Features

Fabric cover with magnetic fastening

Gold plated bi-wiring/bi-amping screwclamp terminals

Nominal Impedance : 4...8 Ohm

Dimensions (WxHxD)

W: 21 cm (8.3") | 25 cm (9.8") with base

H: 105 cm (41.3") with base and equipment feet

D: 30 cm (11.8") | 32 cm (12.6") with base

Weight : 22 Kg

Carton Content

Chrono SL 596.2

Equipmentfeet Spikes

Equipmentfeet

Fabric grill with magnetic mount

Manual



B 30


Type : Compact speaker

Engineering Principle : 2-way bass reflex

Nom. /Music power handling : 70 / 130 watts

SPL (1 watt/1m) : 86.5 db

Frequency response : 33…40.000 Hz

Crossover frequency : 3.000 Hz (adjustable)

Woofer : 1 x 180 mm (7''), Titanium (Wave surround)

Tweeter : 1 x 25 mm (1''), aluminum-manganese

Special Features : Fabric cover with magnetic fastening

Dimensions (WxHxD) : 19 x 36 x 27 cm (7.5 x 14.2 x 10.6)

Weight : 8 Kg

Available accessories : Loudspeaker stand LS 650

Carton Content

Chrono SL 536.2

Equipment feet

Fabric grill (magnetic)

Manual



B 50


Type : Center speaker

Engineering Principle : 3-way bass reflex system

Nom. /Music power handling : 85 / 140 watts

SPL (1 watt/1m) : 87.5 db

Frequency response : 32…40.000 Hz

Crossover frequency : 350 / 3.000 Hz (adjustable)

Woofer : 1 x 154 mm, Titanium (Wave surround)

Midrange : 1 x 154 mm, Titanium (Wave surround)

Tweeter : 1 x 25 mm, ceramic

Special Features : Magnetized Fabric Cover

Nominal Impedance : 4...8 Ohm

Dimensions (WxHxD)

W: 50 cm

H: 17 cm

D: 27 cm

Weight : 9.2 Kg

Available accessories

Loudspeaker stand LS 300

Loudspeaker stand LS 660

Carton Content

B 50 Center

4 x device feet

Operating instructions



SUB 12 R


Type : Subwoofer

Nom. /Music power handling : 500 / 750 watts

Frequency response : 18…200 Hz

Crossover frequency : 55 / 200 Hz (adjustable)

Woofer

1 x 308 mm, Titanium (Wave-Sicke)

1 x 308 mm, Passive radiator

Connection

2 High-Level Inputs

2 low-level inputs

Features

On and off automatically

Radio remote control

Adjustable volume

Adjustable phase adjustment

Adjustable transition frequency

Special Features : SC Technology

Dimensions (WxHxD) : 36 x 48 x 51 cm

Weight : 25.5 Kg

Power consumption 0.82 watts

Carton Content

Sub 12 R

Here we go.

1 x remote control

1 x power cord

4 x device feet

1 x Operating Manual
