Simple design and outstanding technology
For movie and music
With its high-quality titanium chassis, latest-generation wave surround and aluminium-manganese tweeter system, the C 309 is the ideal entry-level model for our online exclusive models. The proven aluminium-manganese tweeter system transmits music signals up to 40,000 Hz. An additional transmission front plate serves as a wave guide and supports the dispersion characteristics of the system. In the new C 309, titanium is used as the diaphragm material in both the mid and low-frequency ranges. In combination with the latest generation of the now triple-folded wave surround, this ensures a controlled, error-free transient response up to the maximum excursion.
Entry in the Canton World
With the C 309, you get great sound for little money: the online exclusive model benefits from the finest technical components borrowed from our larger model series. Even in this price class, high-quality titanium chassis, clamped in the latest generation of wave surrounds, and our aluminium-manganese tweeter systems ensure unique and unadulterated Canton sound. The slim 3-way floor-standing loudspeakers have a modern and neutral appearance in their cabinets with elaborately painted, silk-matt baffles and the resistant structured decor in black and white. A stable powdered steel grid gives the newly developed C 309 an attractive appearance. At the same time, it provides the necessary protection for the speaker systems without negatively affecting the sound of the speakers.
Technical details

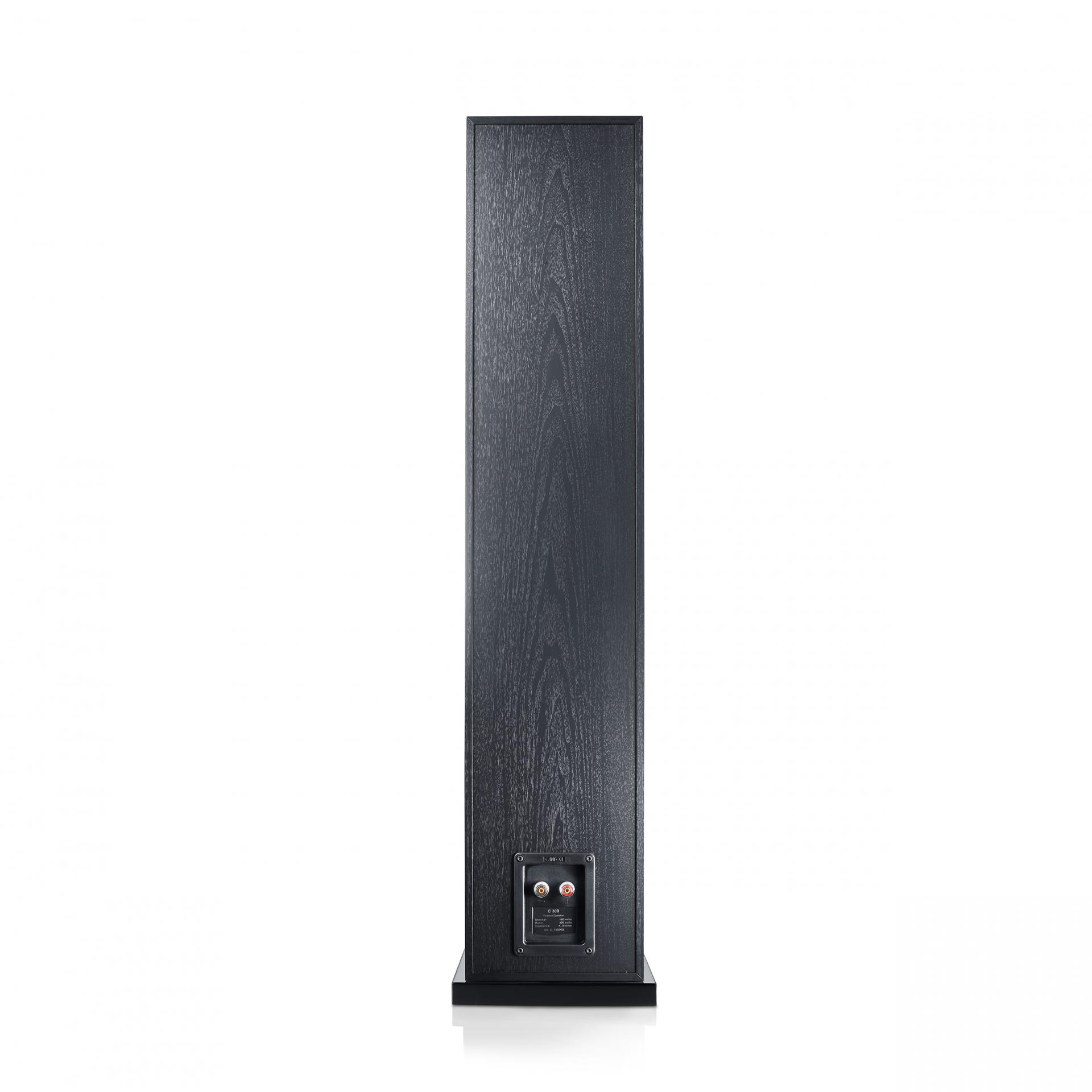

The well-proven aluminium-manganese tweeter system transmits music signals up to 40,000 Hz and has excellent radiation characteristics thanks to the transmission front plate. In the C 309, titanium is used as the diaphragm material in both the mid and low-frequency ranges. In combination with the latest generation of the triple-folded wave surround, this ensures controlled, error-free transient response up to the maximum excursion. Two 180 mm woofers in the floor-standing enclosures are responsible for bass reproduction in conjunction with a bass reflex port. And thanks to the large cabinet volume and the deep tuning, there is plenty of it. Nevertheless, the front-fire bass reflex system always remains precise and clean in its playing - even when installed close to a wall. The silver-plated screw terminals with a receptacle for cable crosssections of up to 10 mm2 offer maximum conductivity and guarantee long-term stable contact.
Perfectly equipped
Our C 309 floorstanding loudspeakers have a simple, neutral and modern design. Their harmonious proportions are reflected in an attractive cabinet with textured foil, which is given an extra dose of elegance by elaborately painted baffles in silk-matt lacquer. Metal front grilles precisely recessed in a circumferential groove provide an additional visual highlight and also offer perfect protection for the loudspeaker drivers installed behind them. The C 309 weighing 23 kilograms rests on slender plinths, with the metal spikes supplied ensuring ideal coupling to the ground. Alternatively, rubber feet are included with the speakers to allow for gentle placement on sensitive floors such as parquet flooring.
Teamplayer
Our attractive C 309 floorstanding loudspeakers can be expanded into a powerful multi-channel home cinema set with other models from the C series. The C 309 serves as the main loudspeaker, which can then be combined with the C 305 centre speaker, the C 302 surround speakers and the Sub 300 active subwoofer. This system is available in our online shop as a complete package "C 309 Set 5.1" at an attractive price. Of course, you can also put together your own personal home cinema multi-channel dream with the individual components and thus experience the ultimate in movie fun within your own four walls.





Product Data
Type : Floorstanding speaker
Engineering Principle : 3-way bass reflex
Nom. /Music power handling : 160 / 320 watts
SPL (1 watt/1m) : 88.3 dB
Frequency response : 20…40.000 Hz
Crossover frequency : 300 / 3.000 Hz
Woofer : 2 x 180 mm (7''), Aluminum (Wave surround)
Midrange : 1 x 180 mm (7''), Aluminum (Wave surround)
Tweeter : 1 x 25 mm (1"), aluminum-manganese
Special Features
DC-technology
Aluminum Frontgrill
Nominal Impedance : 4…8 ohms
Warranty : 5 years
Dimensions (WxHxD) : 24 x 105 x 30 cm (9.5'' x 41.3'' x 11.8'')
Weight : 23 kg
Carton Content
GLE 9
Manual
