Product Infomation

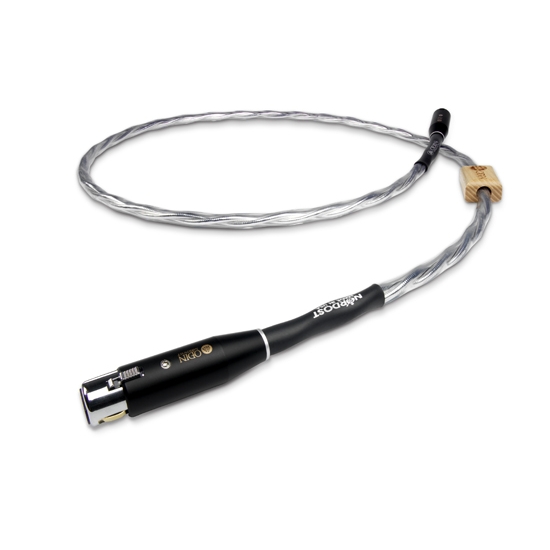

Odin 110 Ohm AES/EBU Digital
Like 75 Ohm S/PDIF data transfer, the AES/EBU balanced digital transmission standard depends on closely controlled impedance parameters to achieve its stated performance. That requires a separate cable construction, dedicated to balanced mode data connection, built around industry standard XLR plugs.
The Odin 110 Ohm digital lead corresponds precisely to the AES/EBU standard, two purpose built Total Signal Control (TSC) tubes delivering “virtual solid†shielding to the Dual Micro Mono-Filament, silver-plated solid-core conductors. The twisted construction and FEP insulation keep the cable conveniently flexible whilst guaranteeing superior dielectric performance and geometrical consistency. Two independent earth wires maintain the integrity of the balanced grounding configuration, ensuring common mode rejection of spurious noise, while the professional grade XLR connectors maintain constant impedance across the cable termination, maintaining the Odin's accuracy in this demanding and critical application.
Connectors Available
Specification
| ㆍInsulation:: | High purity class 1.003 extruded Fluorinated Ethylene Propylene (FEP) |
| ㆍConstruction:: | Precision Dual Micro Mono-Filament and TSC design |
| ㆍConductors:: | 2x 18 AWG extruded silver over 99.99999% OFC with 2x 22 AWG extruded silver over 99.99999% OFC drain wires |
| ㆍCapacitance: : | 10.5pF/ft |
| ㆍImpedance: : | 110 Ohms |
| ㆍ PropagationDelay:: | 89% speed of light |
ㆍOverallShield
ㆍCoverage: :
| 100% Total Coverage |
| ㆍDiameter: : | 10mm |
| ㆍConnectors: : | Furatech Rhodium Balanced XLR |
