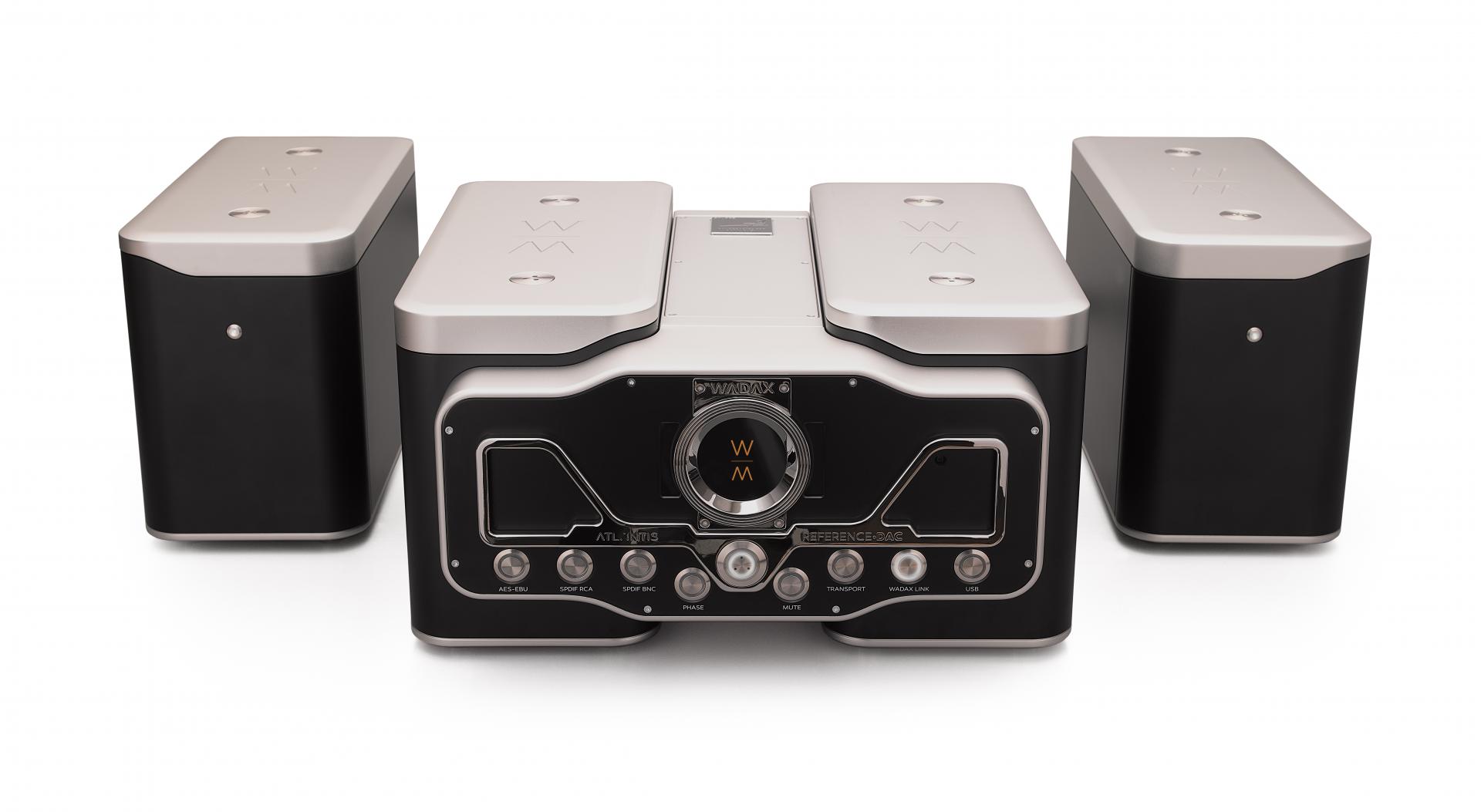

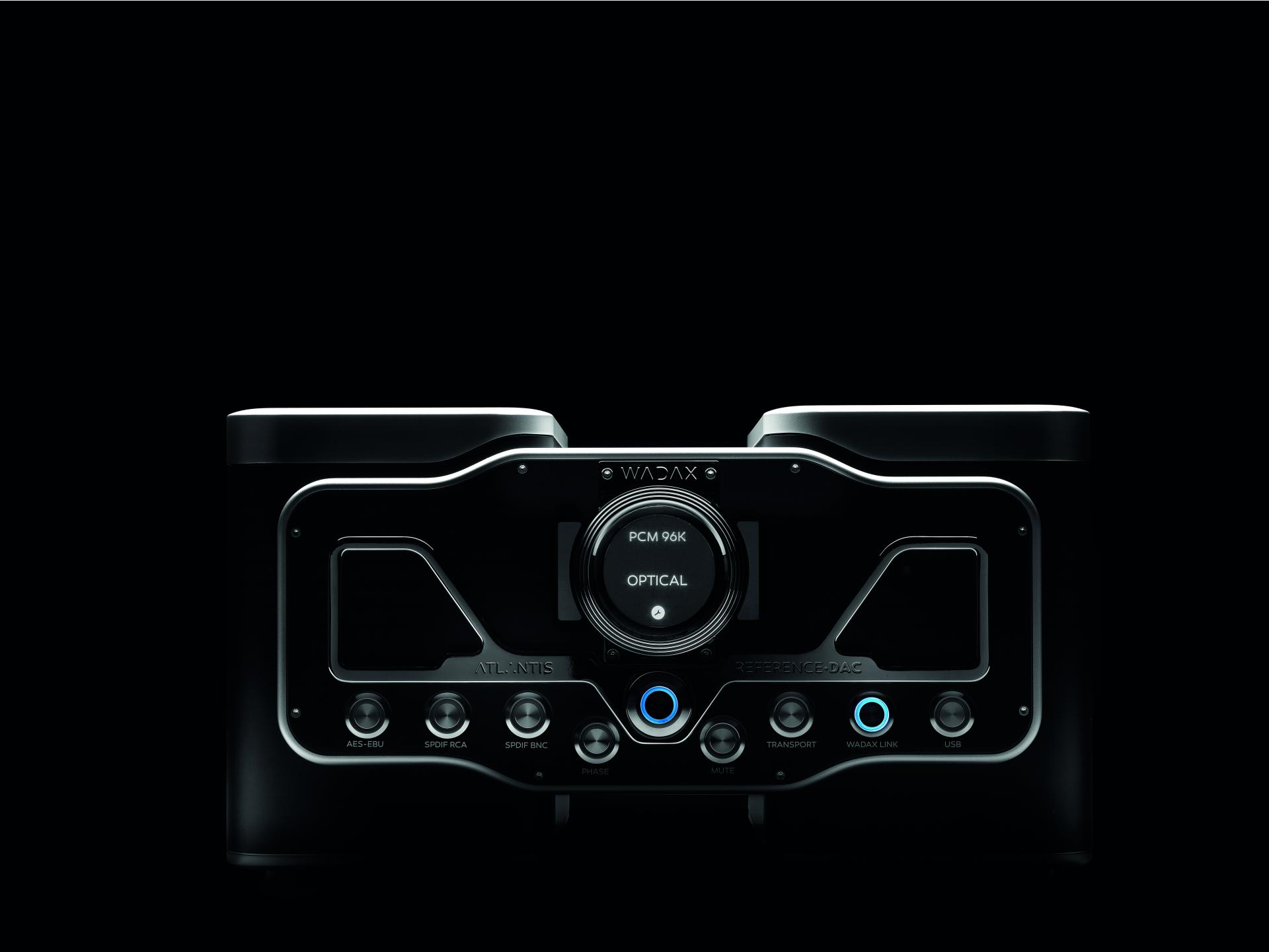

REFERENCE DAC in Numbers
- 23 individual printed circuit boards
- More than 5500 discrete parts
- Dual-differential musIC 3 128-bit-feed-forward error correction process
- Fully balanced, dual mono design with complete physical and electrical separation of left and right channels
- 10 purpose-wound, functionally specific power transformers
- Digital circuitry time aligned to 100ps
- 0.5uV of total rail noise (1Hz-100KHz): ultra sophisticated power supply with distributed regulation topology.
- 30 local regulation stages, 5 stages of DC regulation.
- User-adjustable gain and output impedance.
- Zepto Reference clock: doubled the master clock frequency with only 12fs total jitter.
REFERENCE DAC connectivity
Output Level: 1V / 2V / 4V
Output impedance: 0 / 50 / 75 / 600 ohms

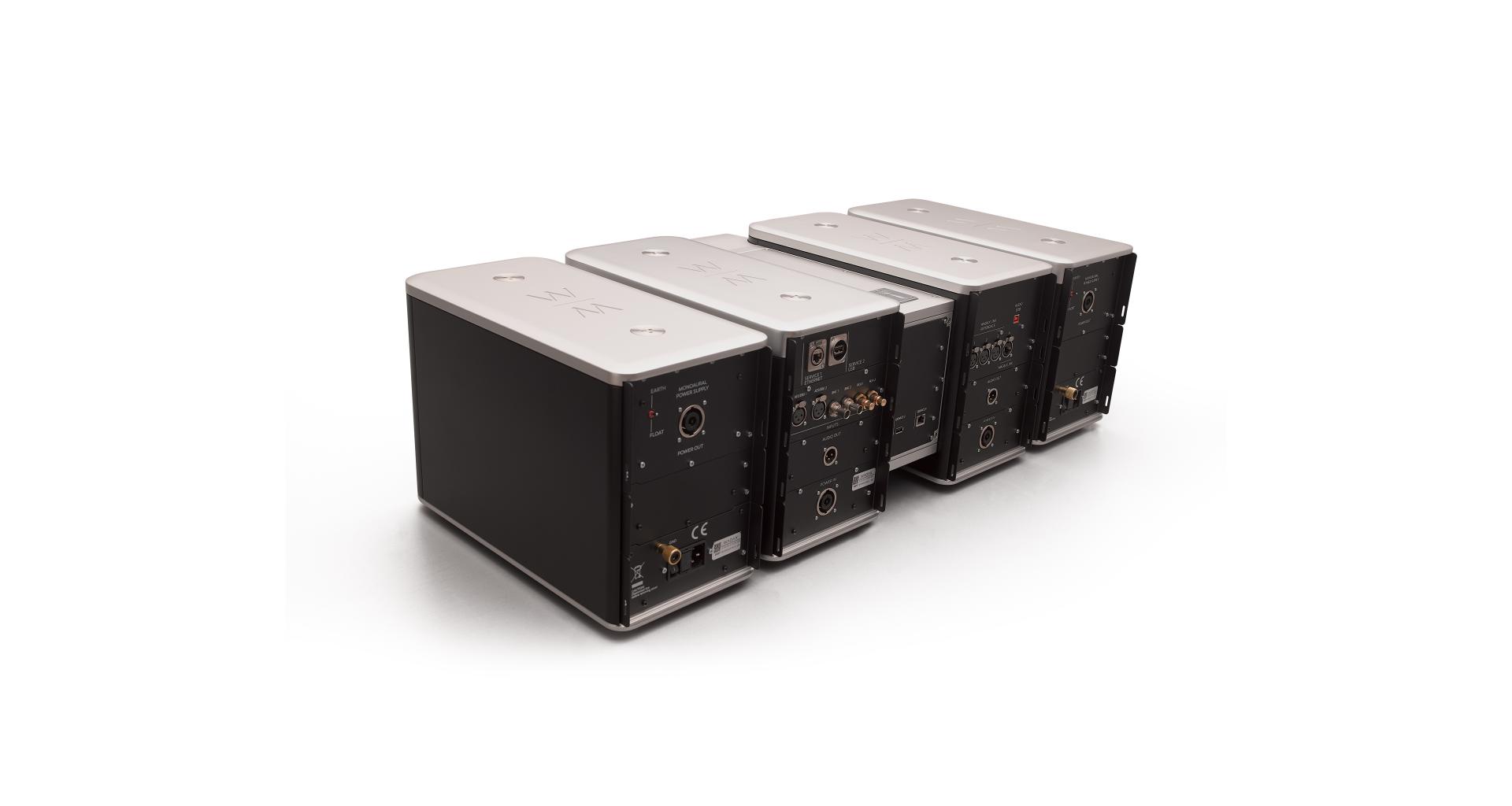

Inputs:
USB (32-384KHz, 16-24-32 bits, DSD256, MQA)
2xSPDIF RCA (32KHz-192KHz, 16-24 bits)
2xSPDIF BNC (32KHz-192KHz, 16-24 bits)
2xAES-EBU (32KHz-192KHz, 16-24 bits)
Reference Wadax Link (native PCM, DSD), 3xAES-EBU, 1 RJ45
Native Wadax Link (native PCM, DSD), 2xRJ45

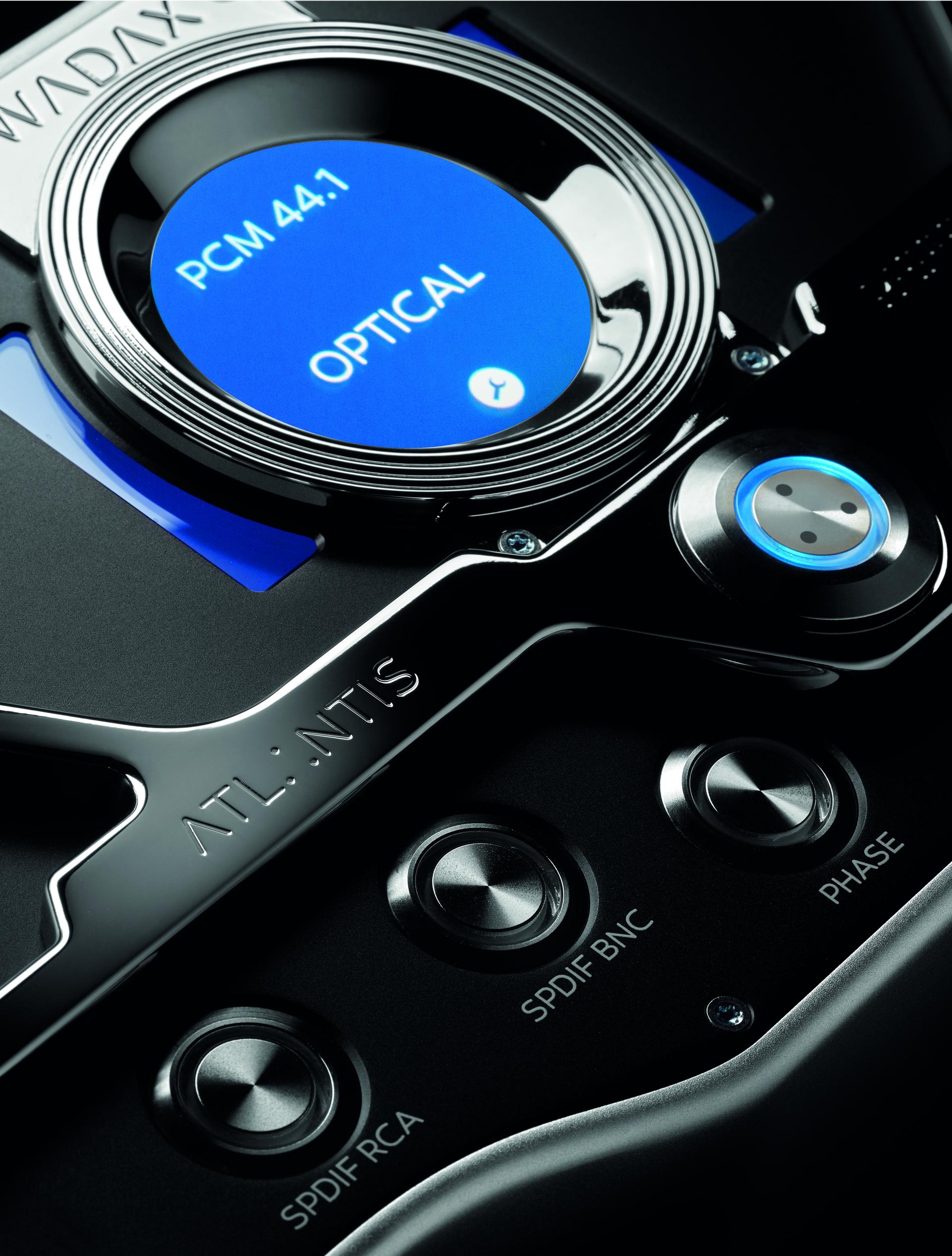

User interface: 5 inch capacitive touch full-colour display 800x480
Power: 110/220V, switchable, max 200W
Remote support and OTA upgrade: software upgradeable over the Internet
